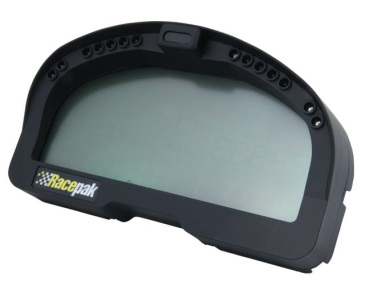

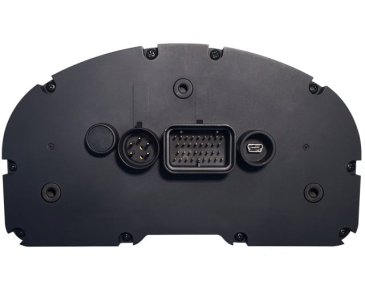

RACEPAK IQ3D DRAG LOGGER DASH ![]()
Part # 250-DS-IQ3D
The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. The IQ3 Drag Logger Dash mergest Racepak's V-Net single cable sensor technology and with a fully programmable display, creating a complete data center. The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Battery volts. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.
Features:
- Channels: 12 Total - 6 internal and option to expand 6 V-Net digital/analog
- Sample Rate: V-Net records data up to 100 frames per second
- Memory: up to 16GB microSD card
- 6 external V-Net sensor inputs with optional high speed logging modules
- Displays up to 28 inputs via 4 pages of microSD Memory.
- Blue Backlight for a stylish look.
- Gear Indicator
- Eight user definable alarms with on screen warning text and lights
- User defined 5 character sensor input names
- User defined shift points
- Shielded, low glare display for sunlight viewing
- Metric and English units for multiple display options.
